Diesel Generator

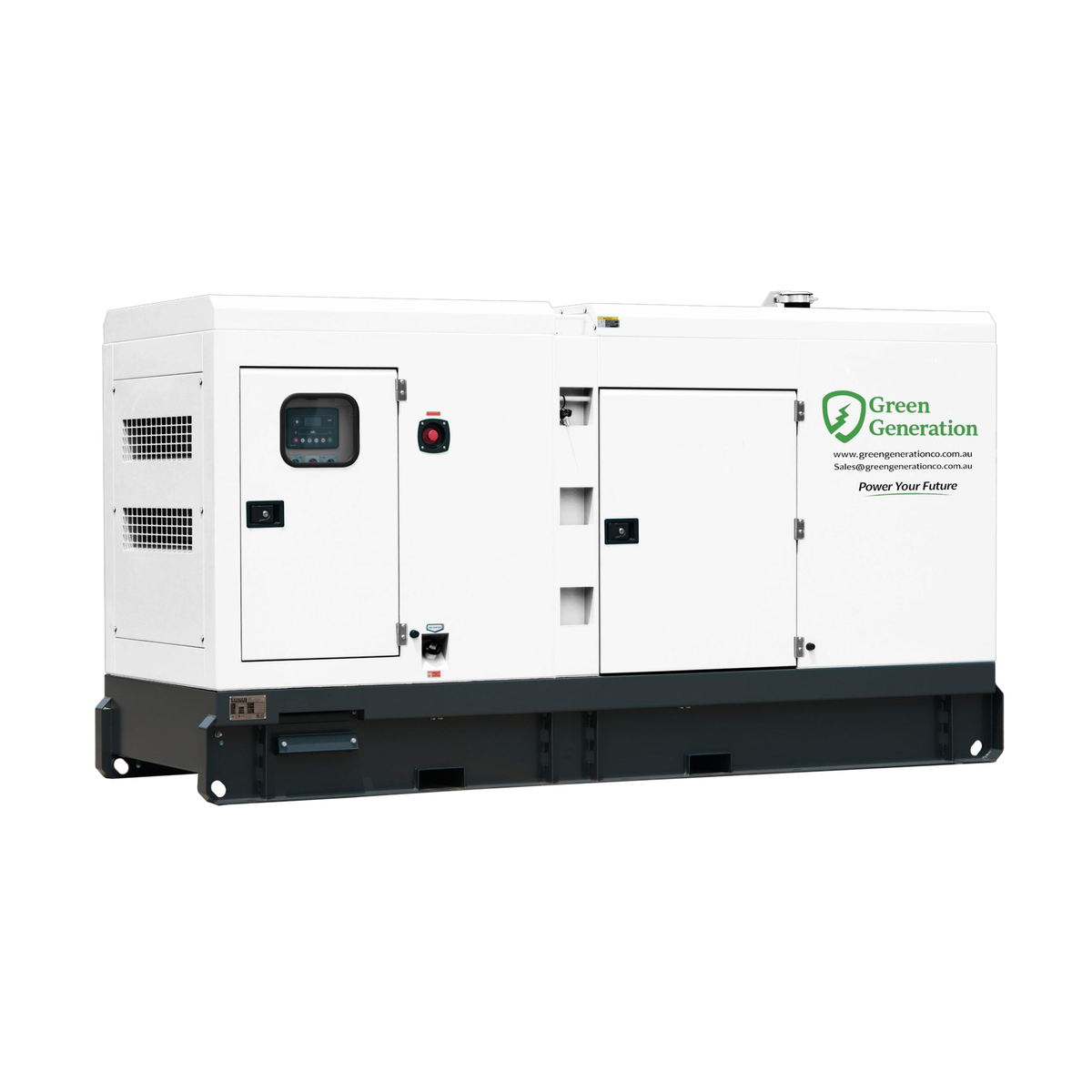

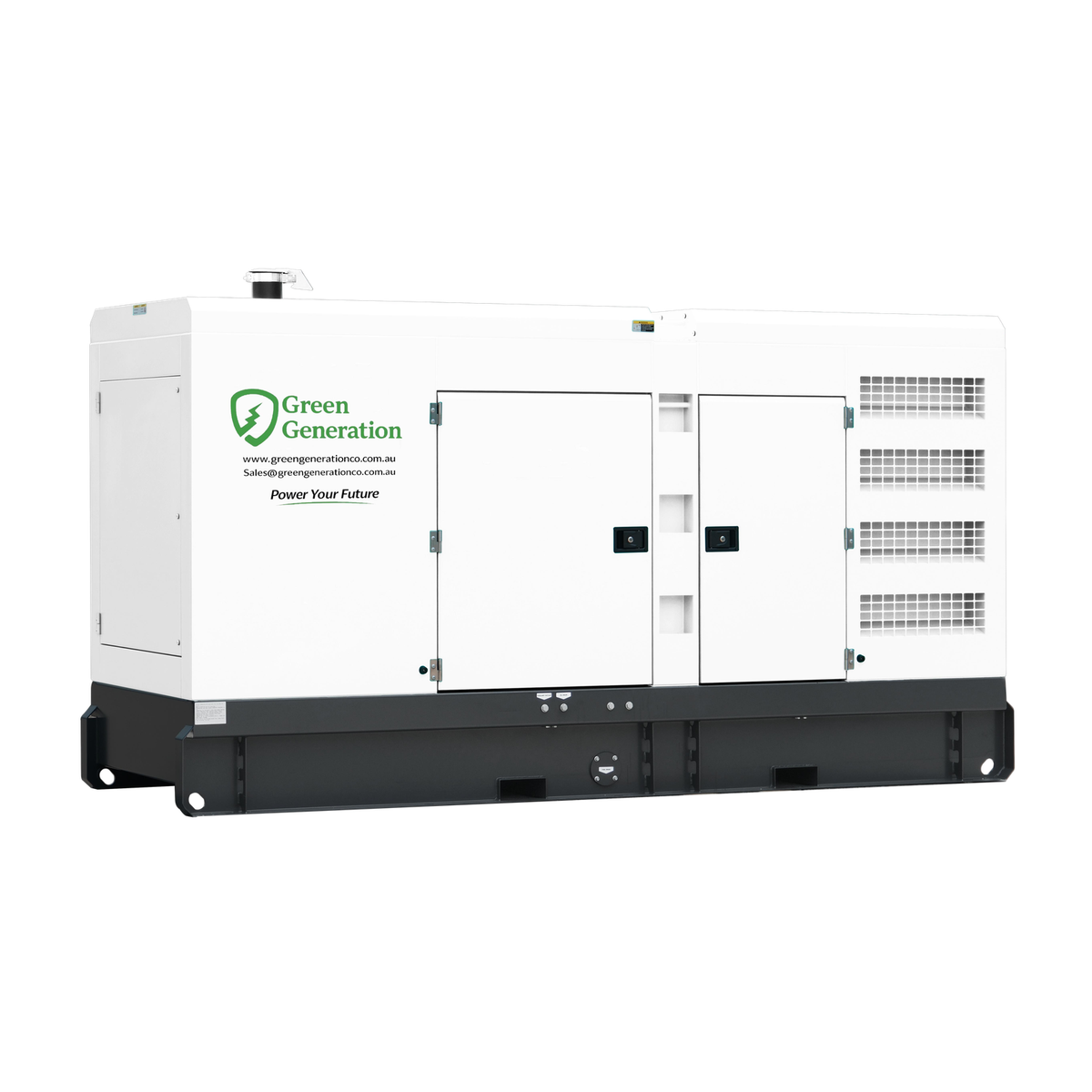

SE-K500C5 Diesel Generator

A 33 kVA standby, 30 kVA prime three-phase generator for farms, workshops, small commercial and telecom sites. Cummins 4B3.9-G12 engine, Stamford S0L2-P1 alternator and ComAp IG500-G2 control in an acoustic weatherproof canopy with a 100 L base tank.

Run time at 75% load16.4 h100 L tank

Standby current, 415 V45.9 A

Dimensions L × W × H2.33 × 1.00 × 1.45 m

Main breakerMCCB 4P 50ASchneider

Factory load tested 0–110%
12 months / 1,000 h warranty
Delivered, installed & commissioned Australia-wide

Download DatasheetSE-K500C5-Spec-v2.0.pdf

Talk to an Engineer0432 952310

Cummins

4B3.9-G12

ComAp

IG500-G2 Controller

800 L

Fuel Capacity

Water-Cooled

Engine Cooling

Overview

Built for the sites that depend on it

Cummins QSZ13-G5 powered diesel generator delivering 450 kVA prime and 500 kVA standby power, equipped with a ComAp IG500-G2 controller.

Heavy-duty Cummins engine
Direct-injection, water-cooled diesel built for long service life.
Brushless Stamford alternator
AVR voltage regulation, H-class insulation and temperature rise.
ComAp IG500-G2 controller
Automatic start on mains failure, engine and generator protection, monitoring.
Acoustic weatherproof canopy
Silent steel enclosure, Henkel pre-treatment and outdoor powder coat.

Control panel

ComAp IG500-G2 controller, Schneider MCCB 4P 50A, emergency stop and power switches.

FREQUENTLY ASKED QUESTIONS

Your power questions, answered.

How do I choose the right generator size?

The right size depends on your equipment, starting loads and how you operate your site. Share your equipment list and any available electrical information with our team, and we can help identify a suitable generator.

What is the difference between standby and prime power?

Standby generators are designed for emergency backup use during power outages. Prime power generators are built to run continuously as the primary power source for off-grid or remote operations.

What is a hybrid power system?

A hybrid power system combines multiple sources—such as diesel generators, solar PV arrays, and battery energy storage—synchronized together to optimize fuel efficiency and lower emissions.

Can solar and batteries work with my existing generator?

Yes, in many cases solar arrays and battery banks can be integrated with existing generator setups through advanced hybrid controllers to reduce generator run-time.
